Measuring Electrodes

High ohm electrodes

guard ring electrode FE 50
Guard Ring Electrode FE 50
for measurement of volume and surface resistance according to standard DIN IEC 60093, DIN IEC 62631, ISO 21178 and others

guard ring electrode FE 25
Guard Ring Electrode FE 25
for measurement of volume and surface resistance according to standard DIN IEC 62631 (DIN IEC 60093), ISO 21178 and others

guard ring electrode FE 25-1
Guard Ring Electrode FE 25-1
for measurement of volume and surface resistance according to standard DIN EN IEC 62631-3-2 und ASTM D 257

guard ring electrode FE 76
Guard Ring Electrode FE 76
for measurement of volume and surface resistance according to standard DIN EN IEC 62631-3-2 und ASTM D 257

leak electrode AE 30-DIN
Leak Electrode AE 30-DIN
for resistance measurement of antistatic solid planar materials according to standard DIN EN 61340-2-3

leak electrode AE 30-ANSI
Leak Electrode AE 30-ANSI
for resistance measurement of antistatic solid planar materials according to standard ANSI/ESD STM11.11

textile elektrode TE 50
Textile Electrode TE 50
for measuring volume and surface resistance of textiles according to standard DIN 54345-1, DIN EN 1149-1 and DIN EN 1149-2

textile stripe elektrode TE 50
Textile Strip Electrode TSE 1
for resistance measurement on strips of textile fabrics according to standard DIN 54345-5

Ringelektrode EH 15
Ring Electrode EH 15
for measurement of volume and surface resistance at small pads according to valid standards

Elektrode EH 16
Elektrode EH 16
for measurement of volume resistance without guard ring at small pads or foils according to valid standards

hand-held electrode HOW 1
Hand-held Electrode HOW 1
for measurement of surface resistance according to valid standards of DIN, EN , IEC and ASTM

hand-held electrode HOW 3
Hand-held Electrode HOW 3
for measurement of surface resistance according to valid standards of DIN, EN , IEC and ASTM

hand-held electrode HOW 16
Hand-held Electrode HOW 16
for measurement of surface resistance at planar or at shaped samples

High Ohm Flexible Tongue Electrode 3501 FE
High Ohm Flexible Tongue Electrode 3501 FE
for resistance measurement at surfaces of foils according to DIN 53482 and DIN EN 62631-3-2

bow electrode BUE 01
Bow Electrode BUE 1
for the measurement of surface resistance at pipes, rollers and offer cylindrical objects

Measuring electrode HOF 2

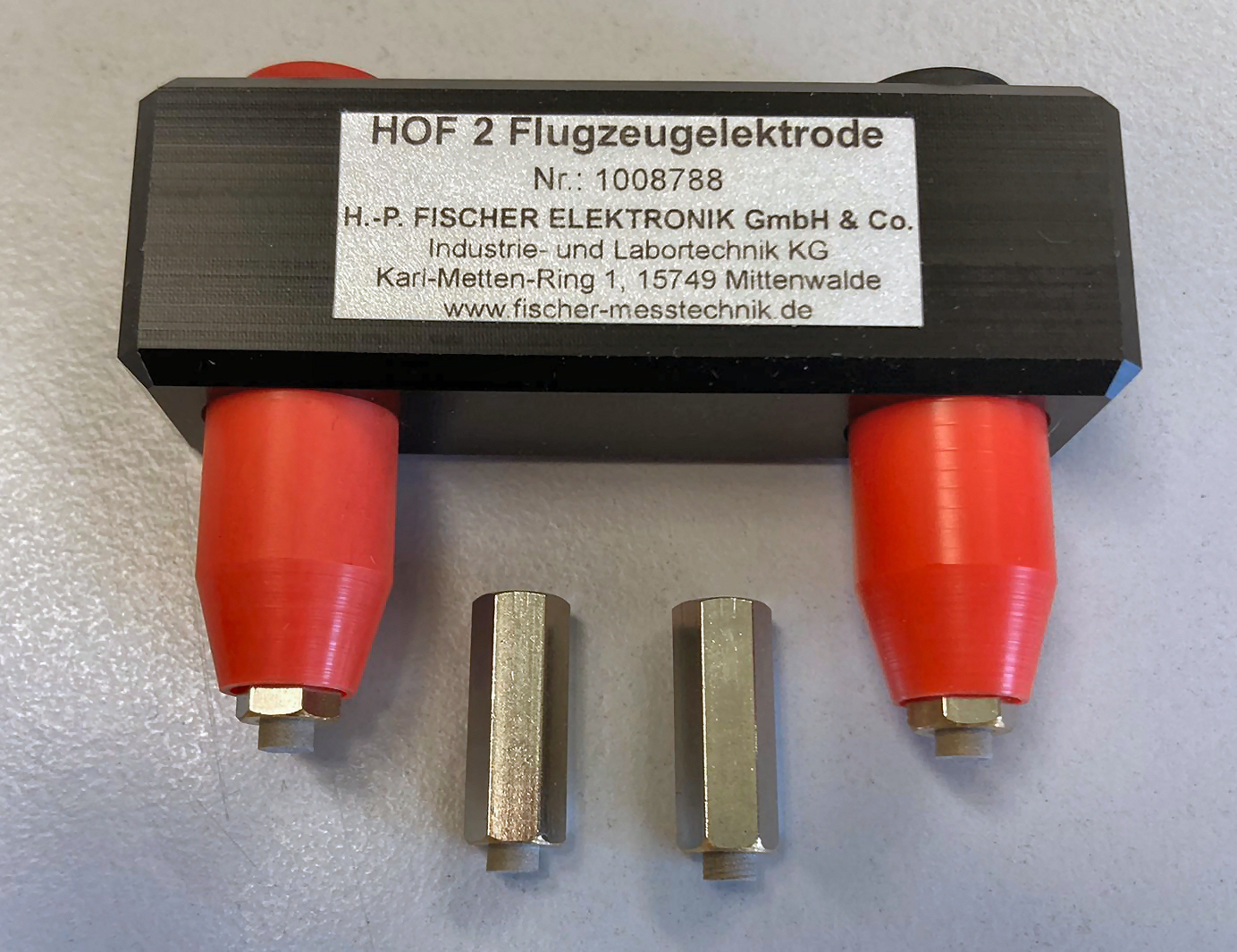

Measuring Electrode HOF 2
for the measurement of surface resistance electrically conductive layers in the aerospace industry based on DIN 65181 according to AIRBUS Radom Test NTX-CMM 53-15-12

Powder Electrode PE 01
Powder Electrode PE 01
for measurement of volume resistance of powdered specimen

Floor electrode FBE 4
Floor electrodes FBE 3 and FBE 4
for resistance measurement of floor covering and installed floors according to standard DIN IEC 61340-4-1

Liquid electrode FSE 3704
Liquid electrode FSE 3704
for measuring volume resistivities of liquid electric insulating materials according to standards DIN EN 60247 and GOST 6581-75

Liquid electrode FSE 2
Liquid electrode FSE 2
for measuring volume resistivities of liquid electric insulating materials according to standards DIN 51412-1


Liquid electrode FSE 3
Liquid electrode FSE 3
for measuring volume resistivities of liquid electric insulating materials according to standards DIN 51412-1

Kelvin Clamps & probes

for measurement of resistances in low ohm range
according to four-wire measurements ( Kelvin method)



Kelvin Clamp KEZ 60
Kelvin Clamp KEZ 60
four-wire clamps pair for measuring points from 10 mm to about 60 mm diameter

Kelvin Clamp KEZ - Max
Kelvin Clamp KEZ - Max
four-wire clamps pair for measuring points from 1 mm to about 15 mm diameter

Kelvin Clamp KEZ - Mini 1
Kelvin Clamp KEZ - Mini 1
four-wire clamps pair for measuring points from 0,5 mm to about 5 mm diameter

Kelvin Clamp KEZ - Micro 1
Kelvin Clamp KEZ - Micro 1
four-wire clamps pair for very thin wires and finest contact points

Kelvin test probe KSP 1
Kelvin test probe KSP 2
four-wire measurment spikes pair


News - material testing
contact

phone:
+49(0)33764 - 25560

Low ohm electrodes

four-pole electrode 4P-1
Four-pole Electrode 4P-1
for measuring of the electric resistance of conductive materials with the four-pole method (Kelvin) according to the standard DIN EN ISO 3915

four-pole bar electrode BPT 1
Four-pole bar electrode BPT 1
for measuring the electrical resistance of solid insulating materials according to DIN EN 62631-3-3 as well as conductive materials according to DIN IEC 60167

four-pole electrode VE-D991
Four-pole Electrode VE-D991
for measuring of the volume resistivity of electrcally conductive antistatic materials with the four-pole method (Kelvin) according to the standard ASTM D 991

four-pole electrode KMV 1000
Cable Measuring Fixture KMV 1000
for measuring of the electrically resistance of cable-, wire- and other material specimens according to the standard DIN IEC 60468
